All playgrounds have been carefully designed to ensure optimum safety and are approved by TUV Rheineland according to EN 1176-1: 2008 for use in professional environments.
The package includes:
- Kit (box/box) with all assembly parts.
- Detailed assembly instructions.
- Slide 300cm.
- Finnish impregnated timber (cut ready to assembly dimensions), with quality and impregnation certificates.
CHARACTERISTICS OF A PLAYGROUND TOWER Q4s
|
Maximum number of users |
: |
9 persons |
|
Age of users |
: |
3 - 12 years old |
|
Slide |
: |
1x green |
|
Tower installation surface |
: |
65sq.m. |
|

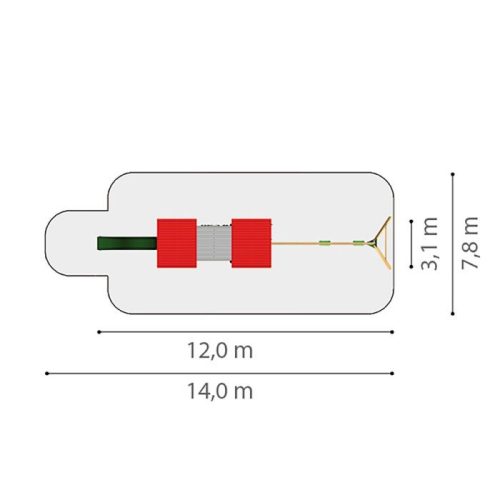

Safe installation area |
: |
14,0 x 7,8m. |
|
Slide platform height |
: |
1,5μ. |
|
Tower height |
: |
4μ. |
|
Preferred concrete |
: |
650lt / 180kg |
|
Assembly hours 2 persons |
: |
19 hours |
CERTIFICATES FOR PROFESSIONAL USE / USE IN PUBLIC PLACES:
- DIN EN 1176-1/12.17
- DIN EN 1176-2/12.17
- DIN EN 1176-3/12.17
- AFPS GS 2014:01
The equipment must be installed over a vibration absorbing surface according to European Standard EN 1176-1:2008 (e.g. rubber, sand, grass, gravel for fall heights ≥ 1,5 m)
Under strict conditions, the playground is assembled, installed and maintained according to the instructions in the forms included.
